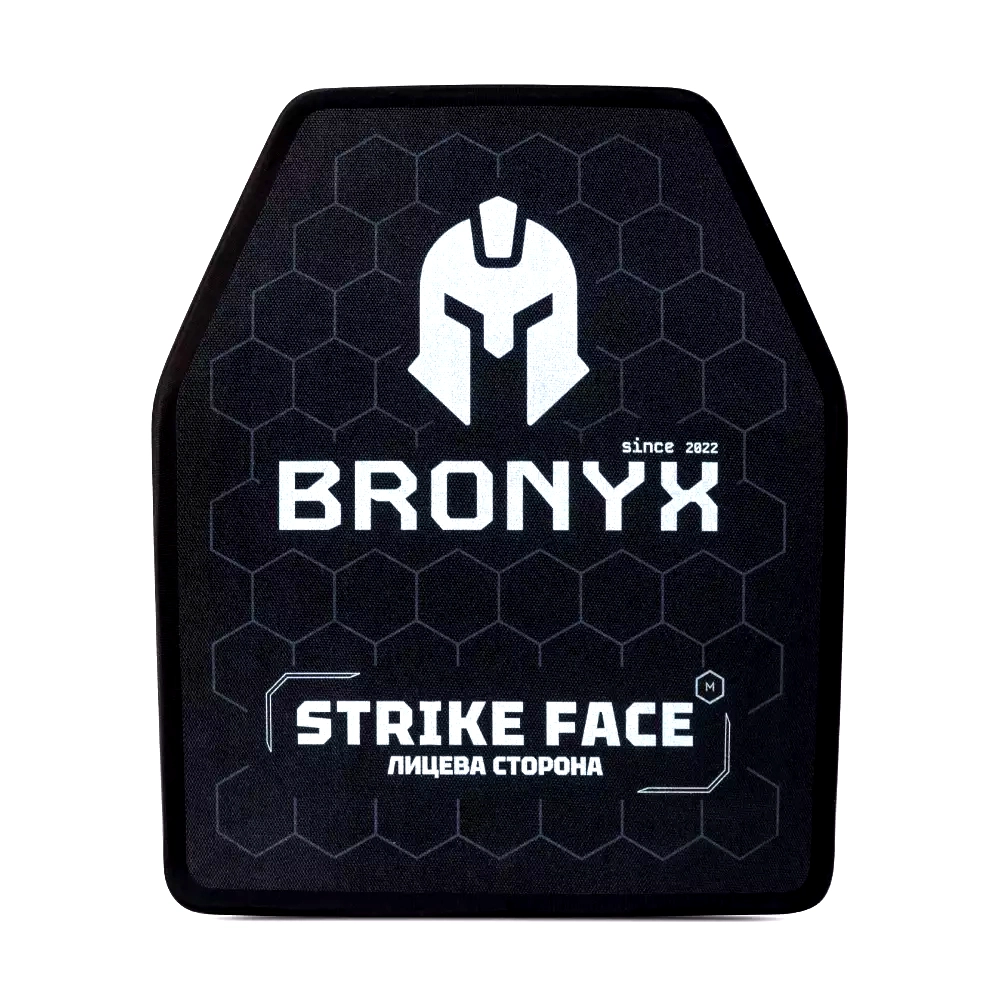

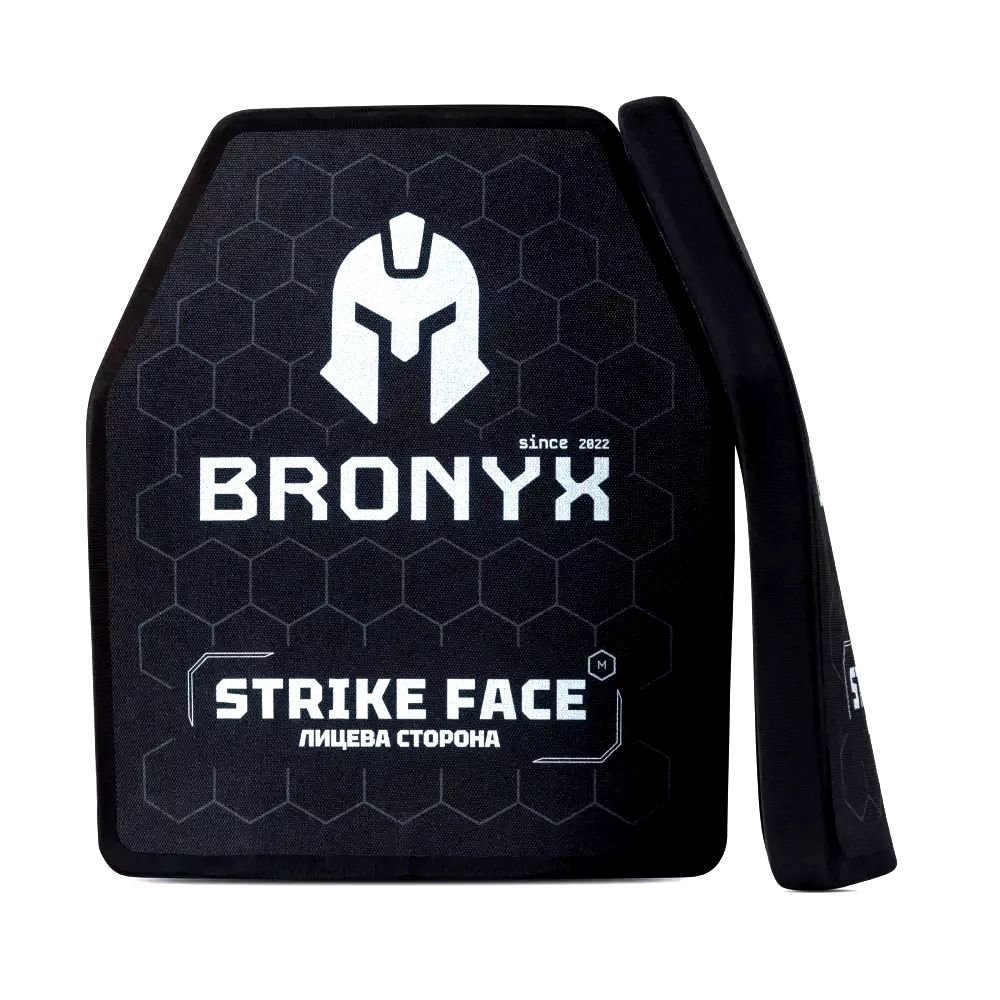

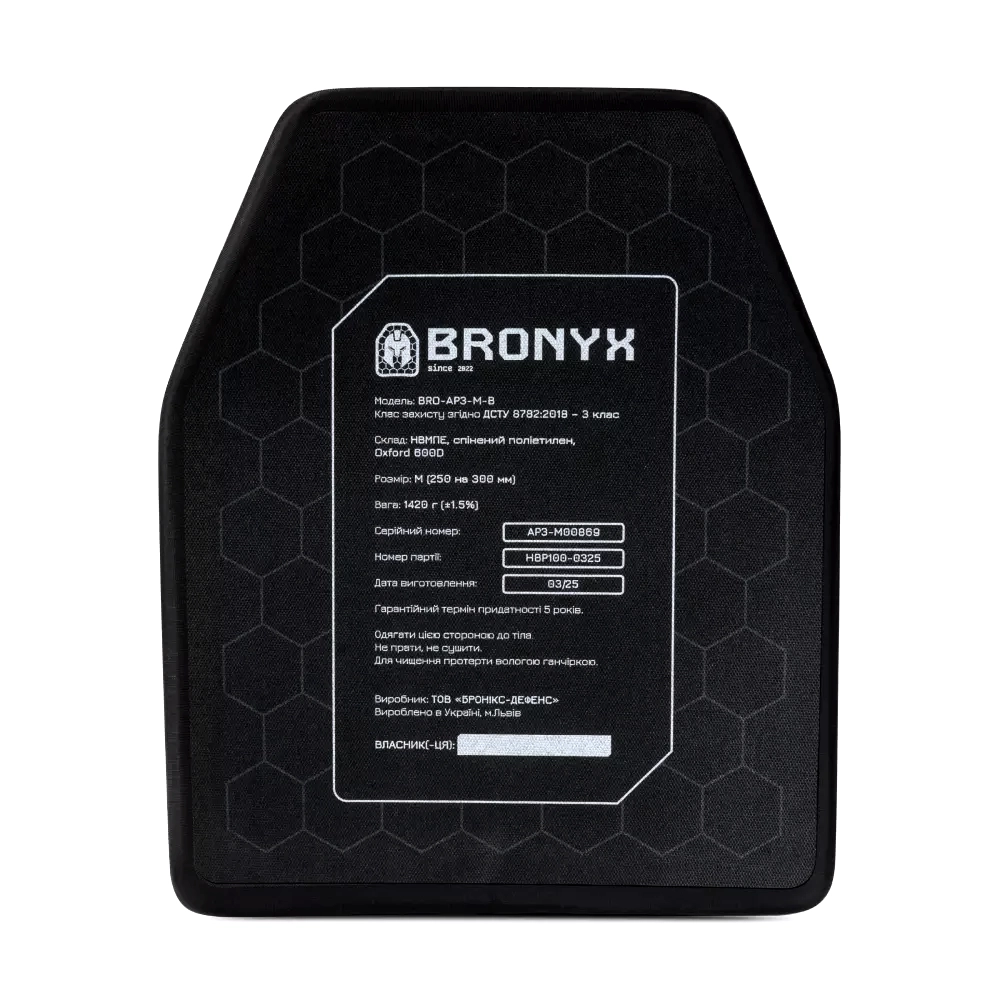

Armor plate Bronyx AP3 (1 pc.)

Armor plate Bronyx 3rd class

Bronyx Class 3 armor plate is a lightweight armor plate made of ultra-high molecular weight polyethylene (UHMWPE) that combines minimal weight and reliable protection.

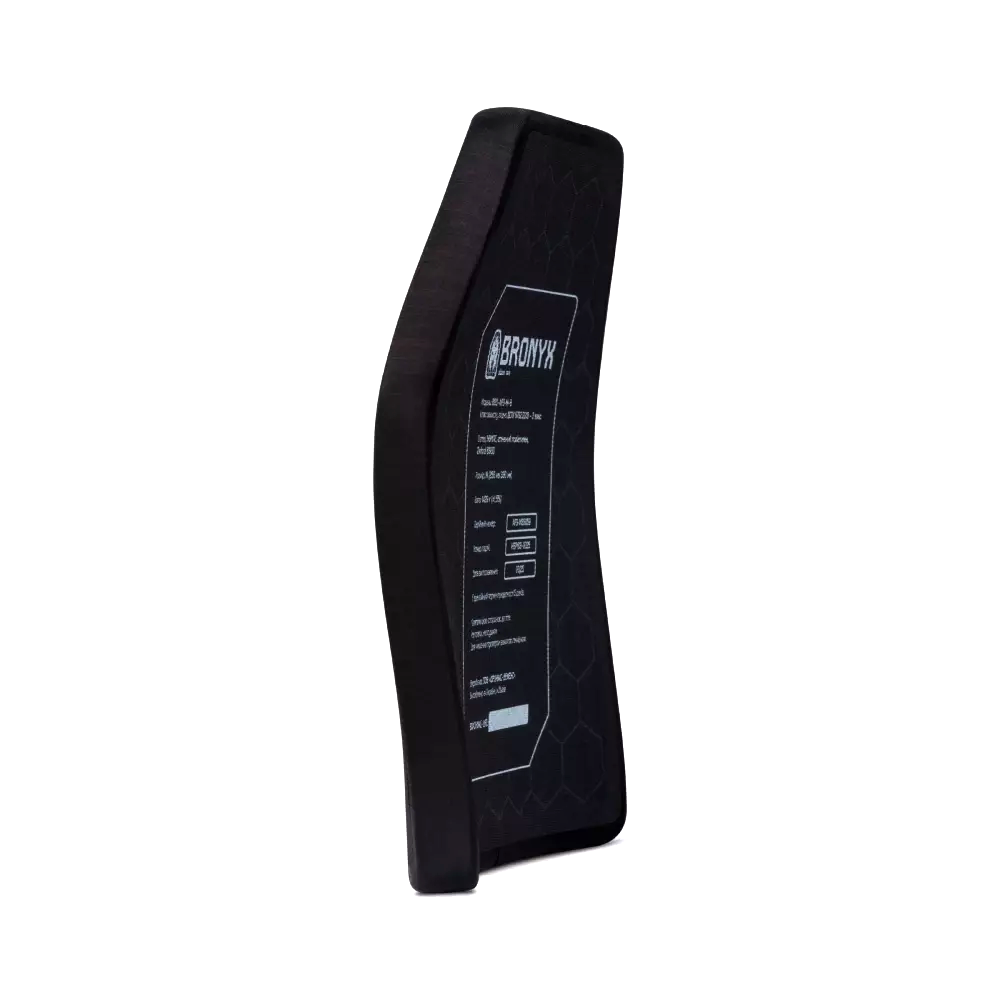

The plates have a standardized Shooter's Cut shape with beveled upper corners and an anatomical 3D curve (3D multi curved), which provides a comfortable fit to the body and even weight distribution. Optimal for chest circumferences up to 110 cm (±5 cm).

The size of the plate is 250x300 mm.

Protective properties

The armor plate corresponds to protection class 3 according to DSTU 8782:2018 . Protective properties are confirmed by tests in a certified laboratory.

• protection against 7N6 bullets (5.45x39 PS, bullet speed 916 m/s);
• protection against bullets 57-N-231 (7.62x39 PS, bullet speed 738 m/s);
• protection against debris, shrapnel and ricochets.

Depth of non-obstructive deformation (max), mm

• 5.45 x 39 PS - 8 mm
• 7.62 x 39 PS - 22 mm

For body armor without a damping lining, it is recommended to use an additional damper to reduce armor deformation when hit by a bullet.

Main advantages

• 3rd class of protection according to DSTU 8782:2018 ;
• material — ultra-high molecular weight polyethylene ( UHMWPE );
• anatomical 3D Multi Curved bend;
• Shooter's Cut shape;
• size M — 250x300 mm;
• Protection area: 710 sq m
• The weight of one plate is 1.4 kg .

Characteristics

• Manufacturer: BRONYX
• Type: armor plate
• Protection class: 3
• Standard: DSTU 8782:2018
• Material:
• 1 layer of ULCMPE (ultra-high molecular weight polyethylene)
• 2 layer Foamed polyethylene
• Oxford outer layer
• Size: 250x300 mm
• Size: M
• Thickness: 24 mm
• Shape: Shooter's Cut
• Curve: 3D Multi Curved
• Weight: 1.42 kg
