Armor plate Bronyx CAP4 class 4 (1 pc.)

Armor plate Bronyx 4th class

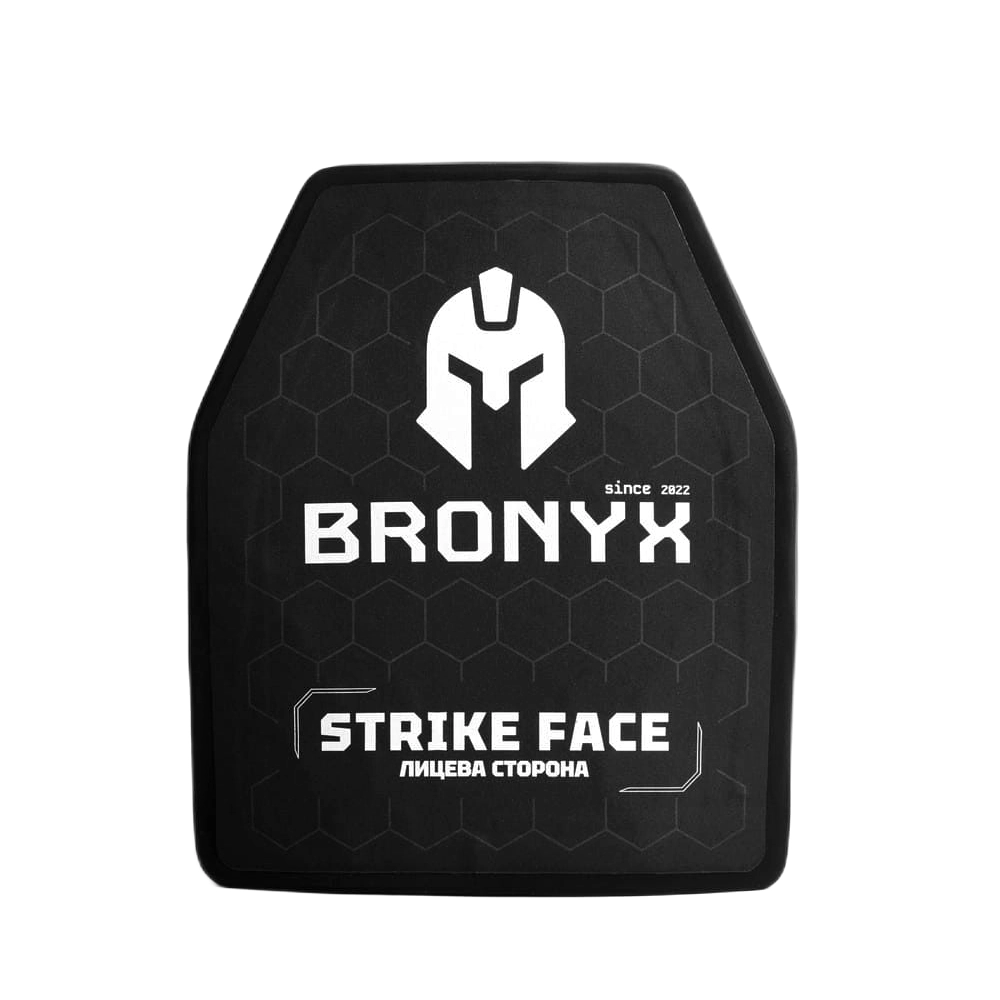

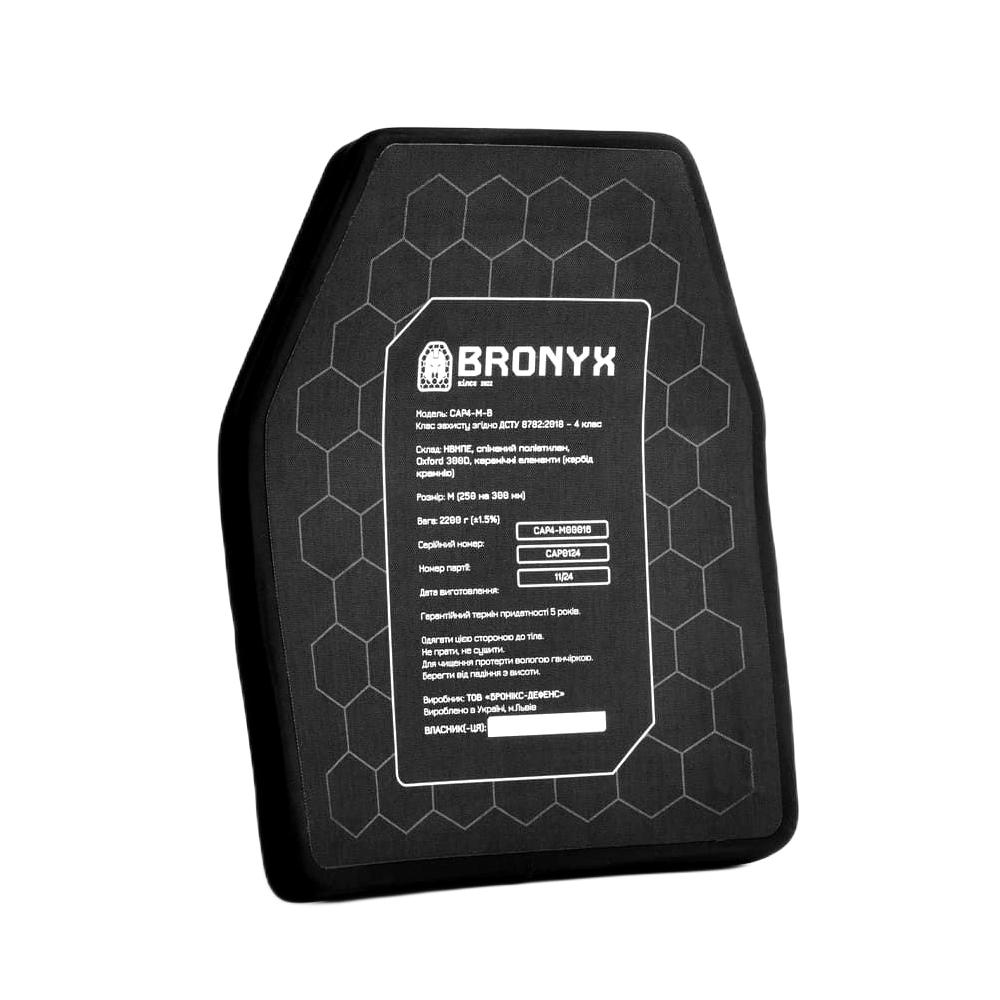

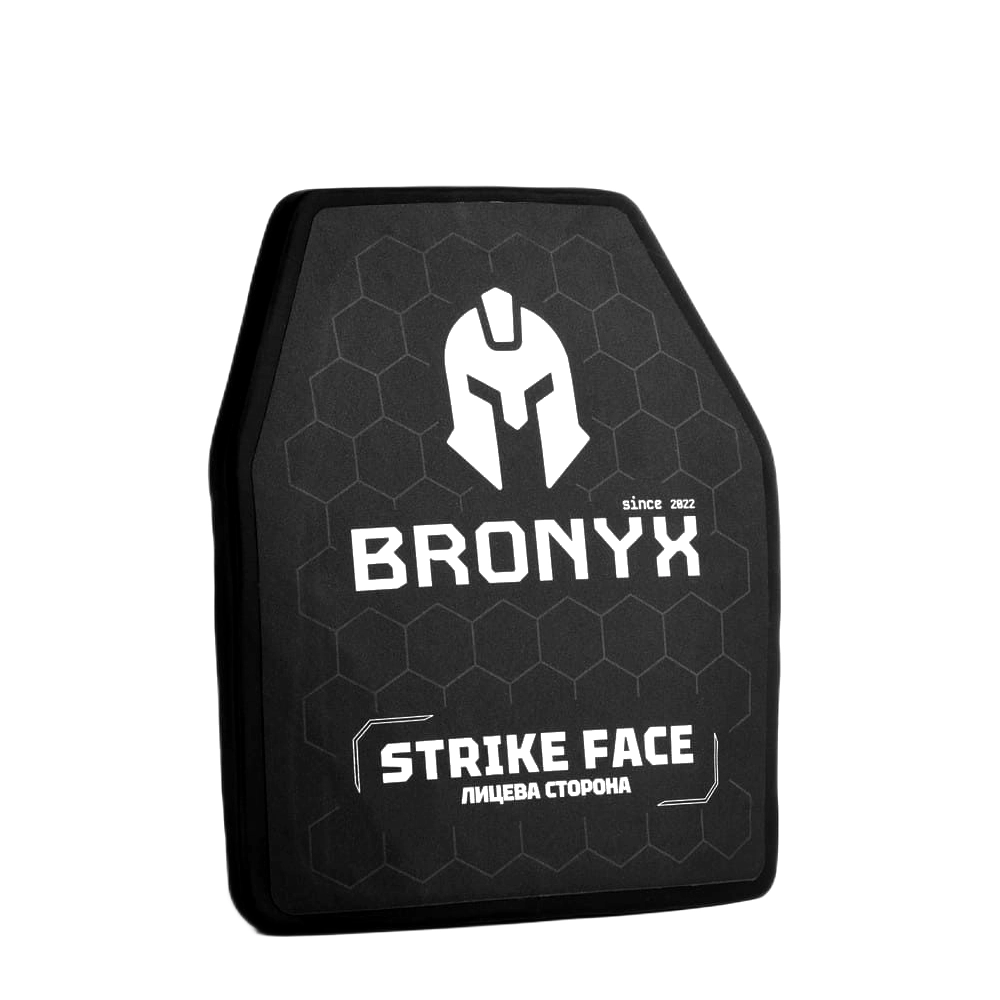

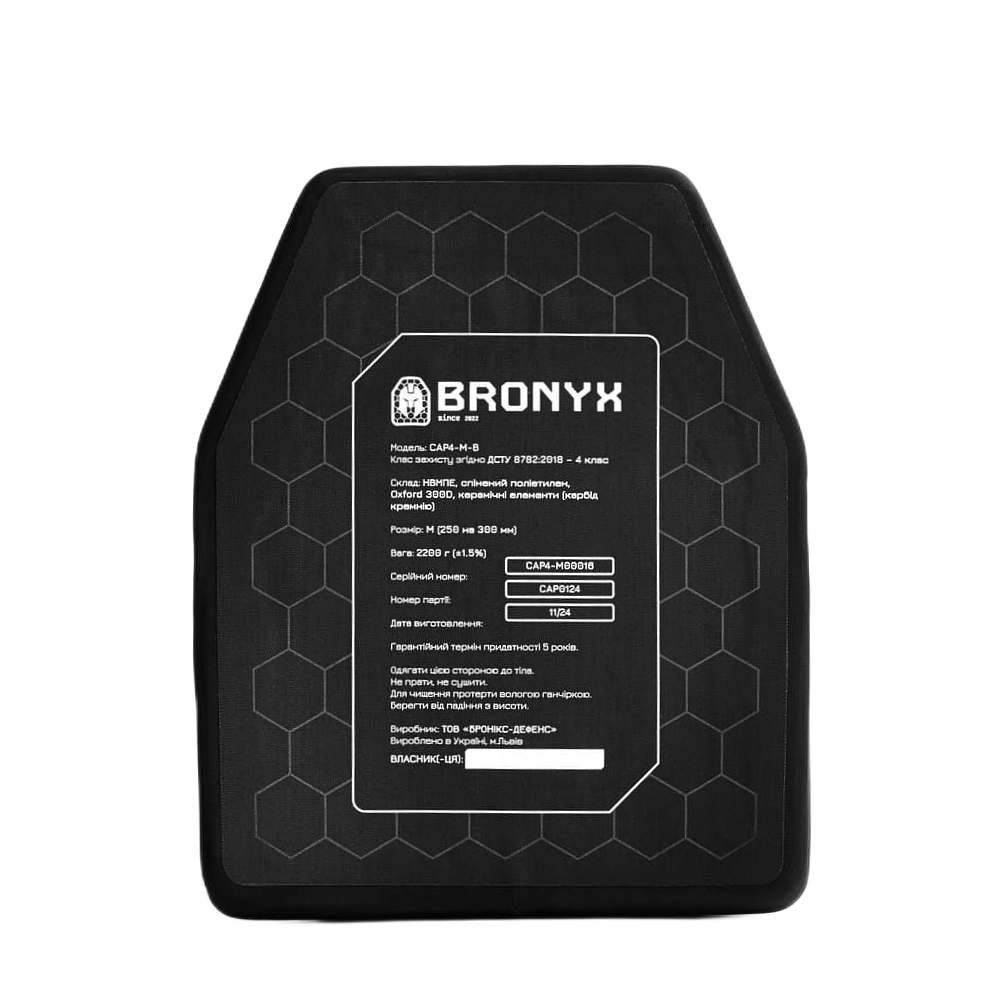

Bronyx Class 4 armor plate is a lightweight armor plate made of ceramics (Silicon Carbide SiC) and ultra-high molecular weight polyethylene (UHMWPE) that will reliably protect you in the most difficult conditions.

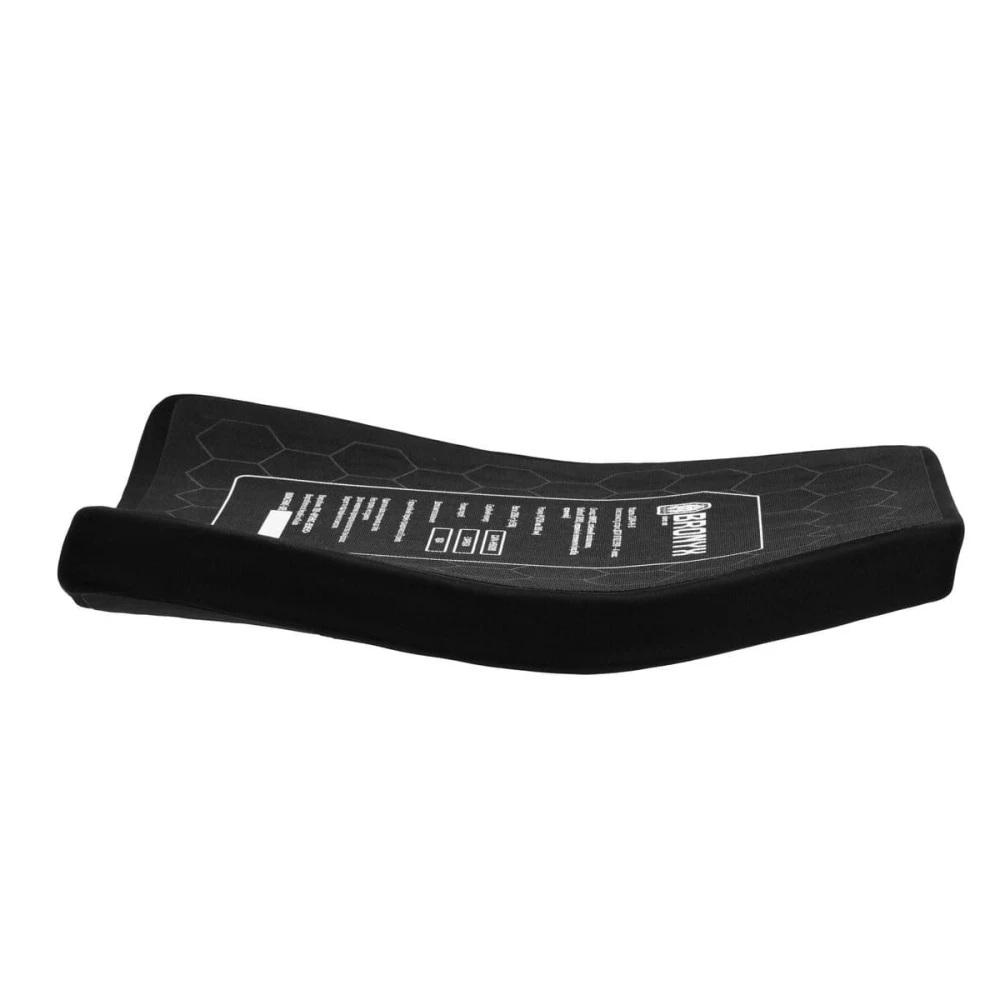

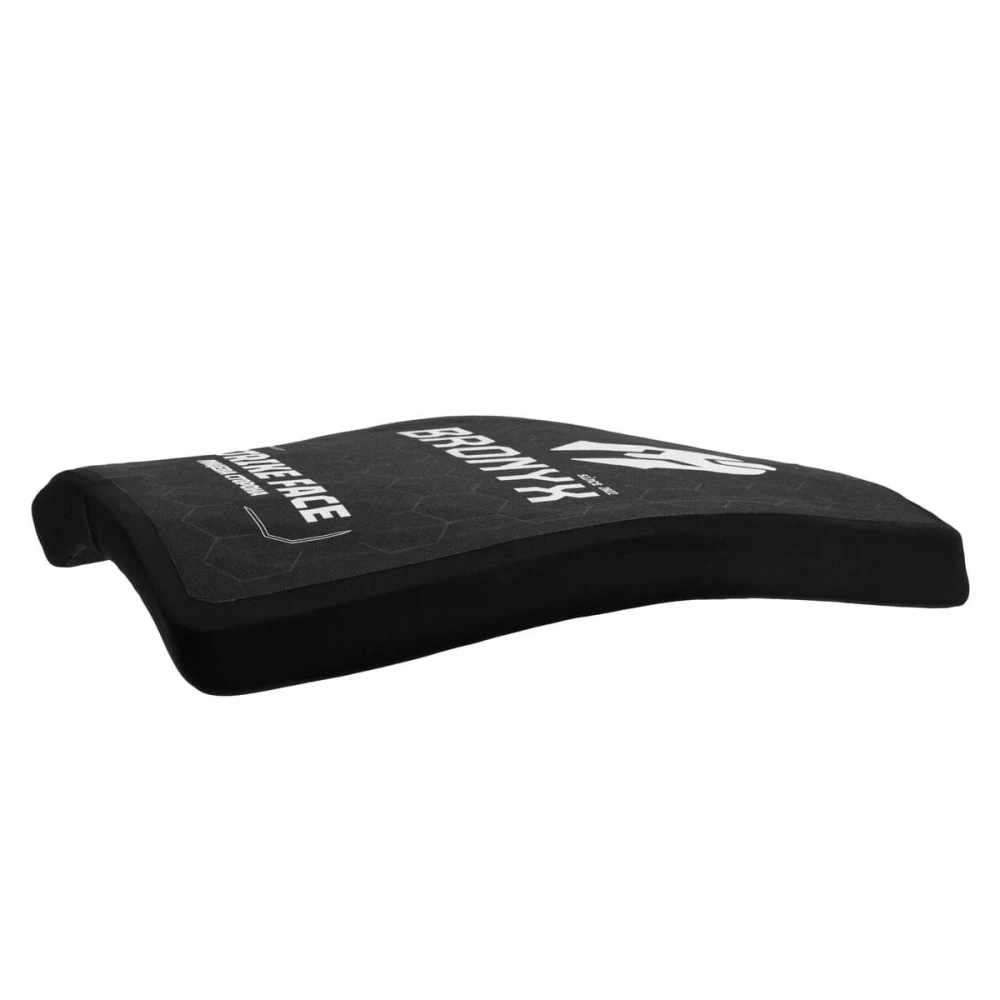

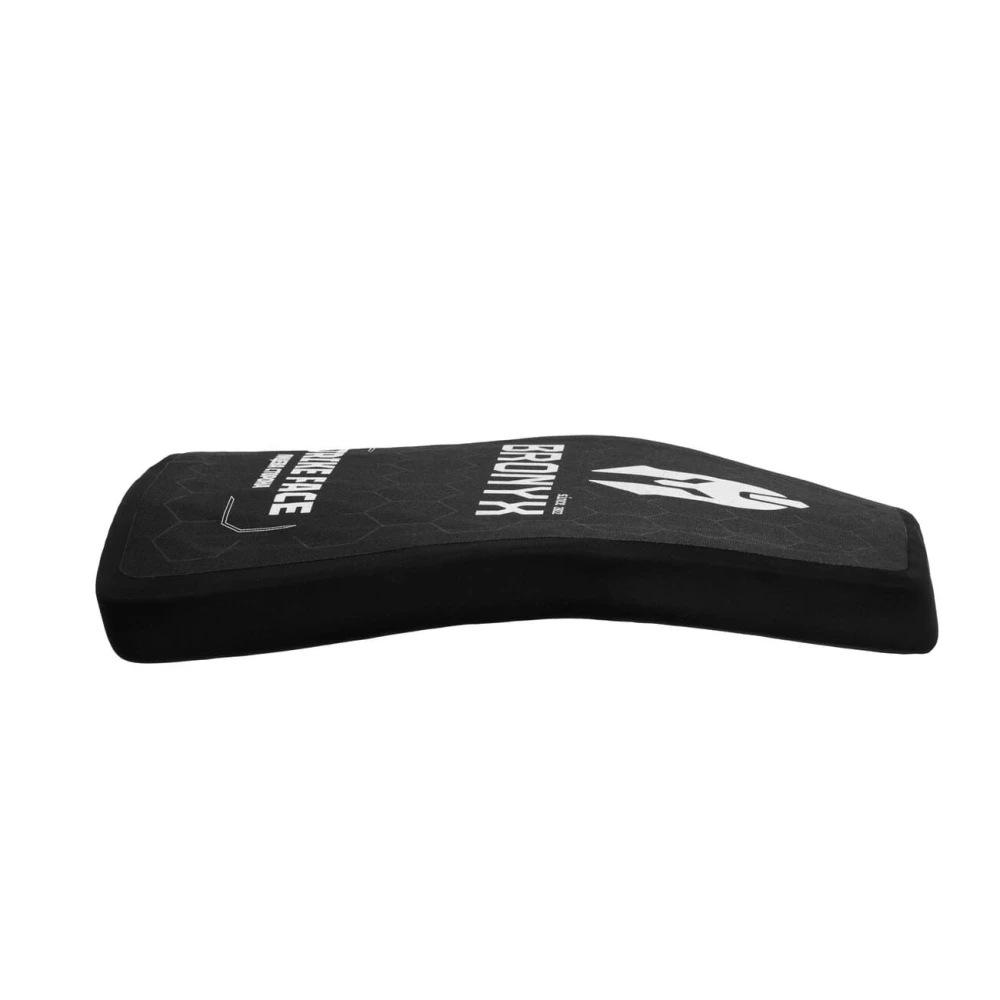

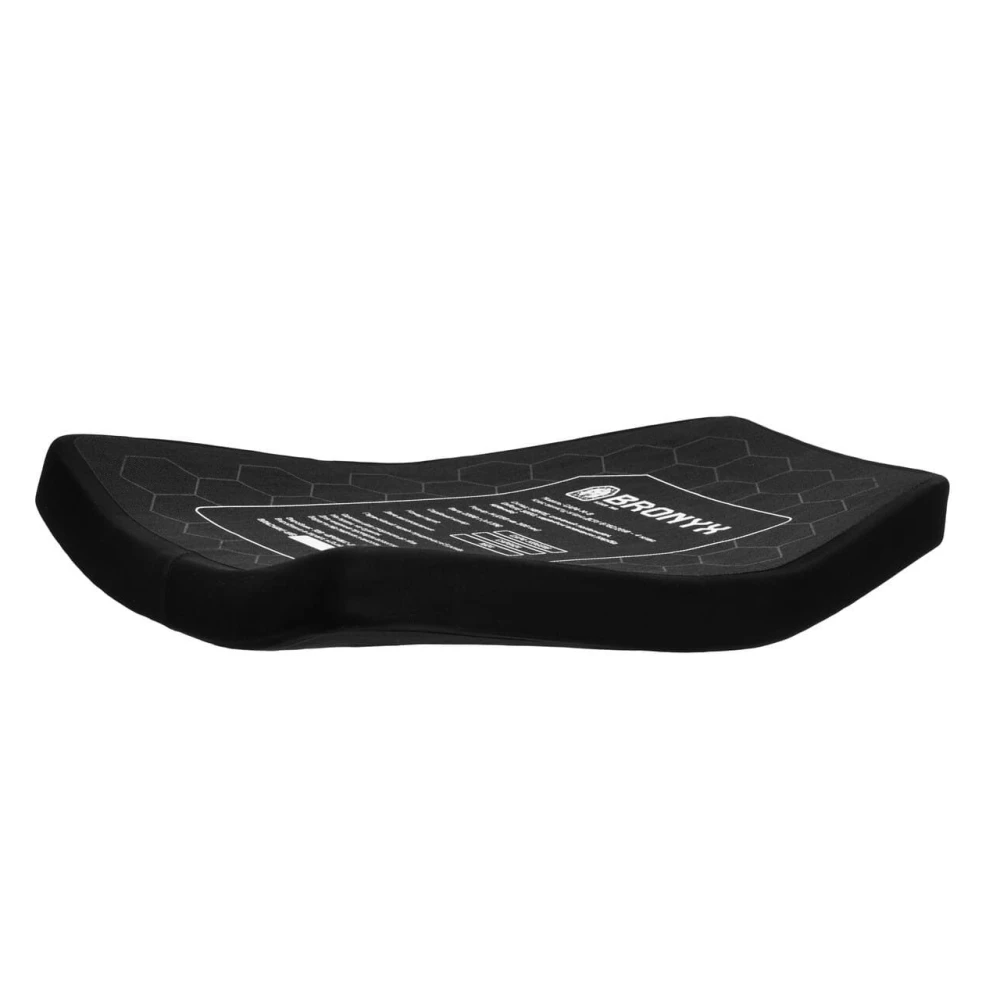

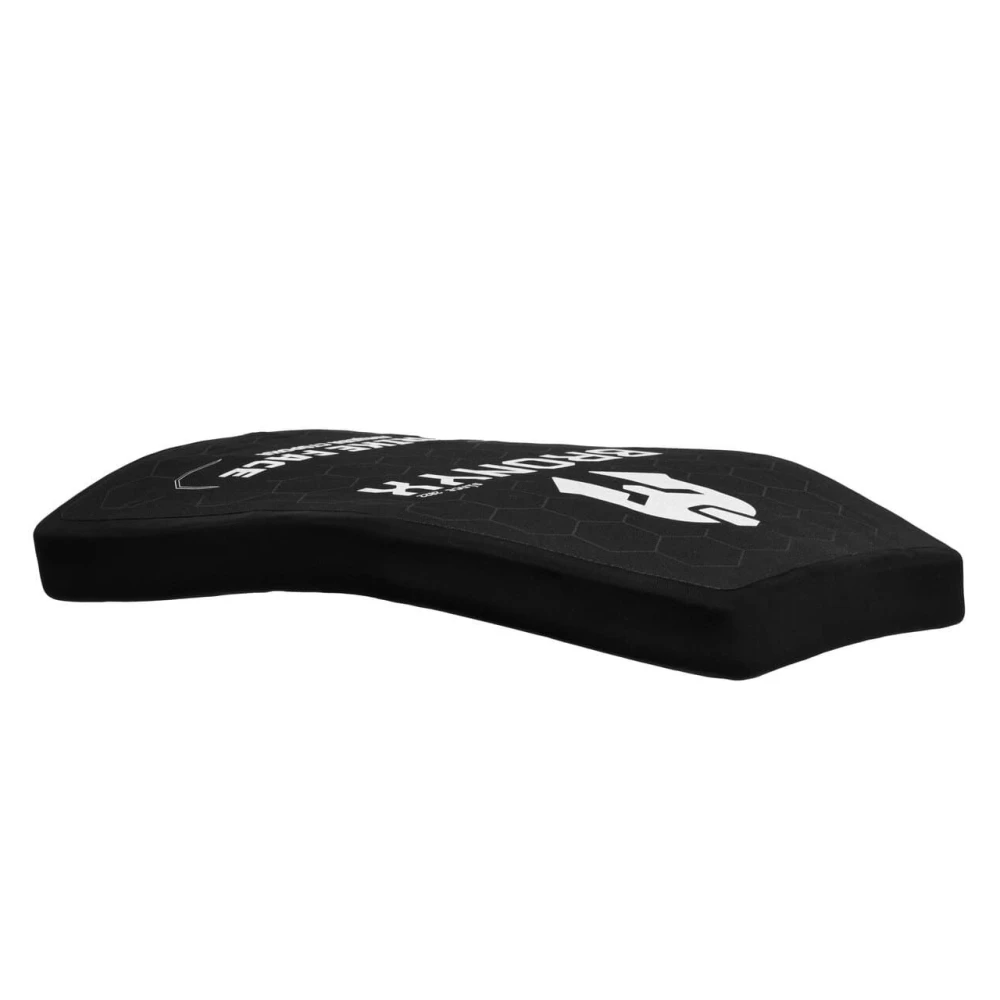

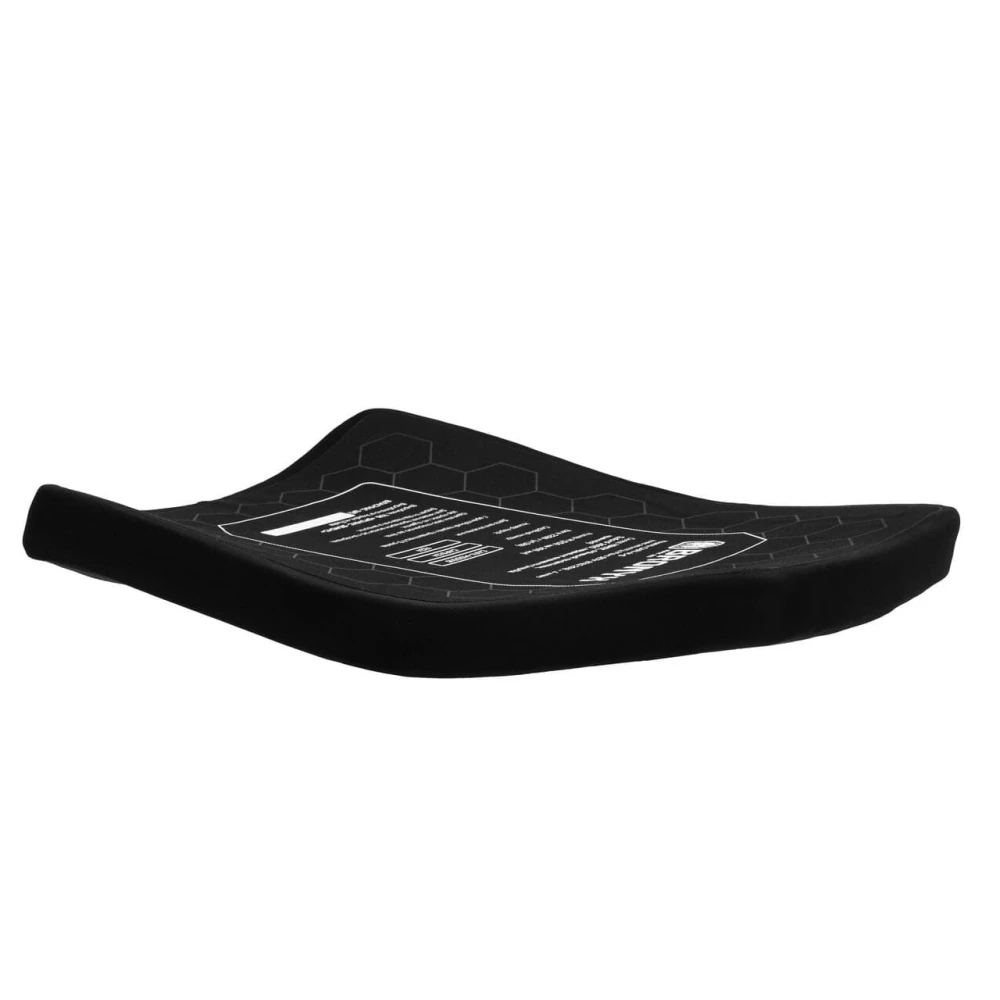

The plates have a standardized Shooter's Cut shape with beveled upper corners and an anatomical 3D curve (3D multi curved), which provides a comfortable fit to the body and even weight distribution. Optimal for chest circumferences up to 110 cm (±5 cm).

The size of the plate is 250x300 mm.

Protective properties

The armor plate corresponds to protection class 4 according to DSTU 8782:2018 . Protective properties are confirmed by tests in a certified laboratory.

• protection against 7N10 bullets (5.45x39 PP, bullet speed 910 ±15m/s);
• protection against bullets 57-N-323s (7.62x54 LPS, bullet speed 850 ±15m/s);
• protection against debris, shrapnel and ricochets.

Depth of non-obstructive deformation (max), mm

• 5.45 x 39 PP - 0 mm
• 7.62 x 54 LPS - 24 mm

For body armor without a damping lining, it is recommended to use an additional damper to reduce armor deformation when hit by a bullet.

Main advantages

• 4th class of protection according to DSTU 8782:2018 ;
• material - ceramics ( silicon carbide SiC ) and ultra-high molecular weight polyethylene ( UHMWPE );
• anatomical 3D Multi Curved bend;
• Shooter's Cut shape;
• size M — 250x300 mm;
• Protection area: 710 sq m
• The weight of one plate is 2.23 kg .

Characteristics

• Manufacturer: BRONYX
• Type: armor plate
• Protection class: 4
• Standard: DSTU 8782:2018
• Material:
• 1 layer Foamed polyethylene
• 2nd layer Ceramics (Silicon Carbide SiC)
• 3rd layer ULPHPE (ultra-high molecular weight polyethylene)
• 4 layer Foamed polyethylene
• Oxford outer layer
• Size: 250x300 mm
• Size: M
• Thickness: 26-27 mm
• Shape: Shooter's Cut
• Curve: 3D Multi Curved
• Weight: 2.23 kg

Armor plate test certificate at the link
