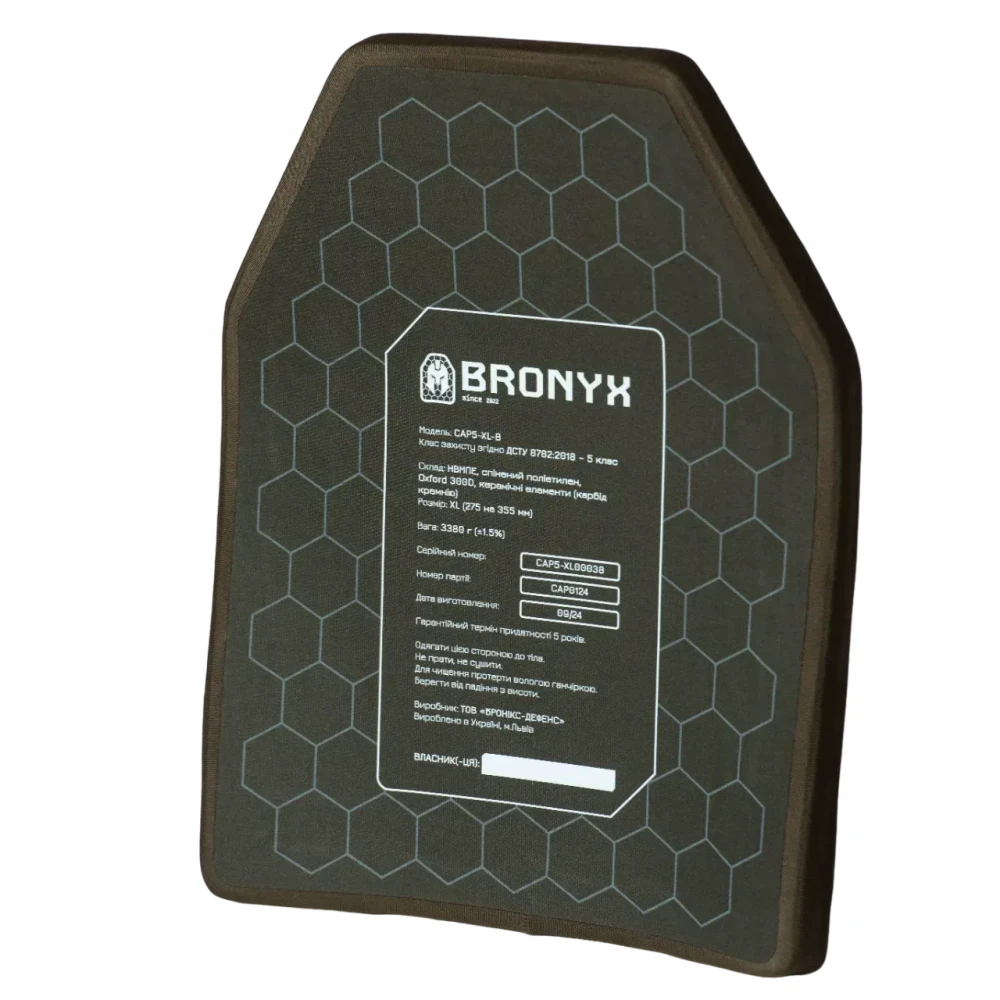

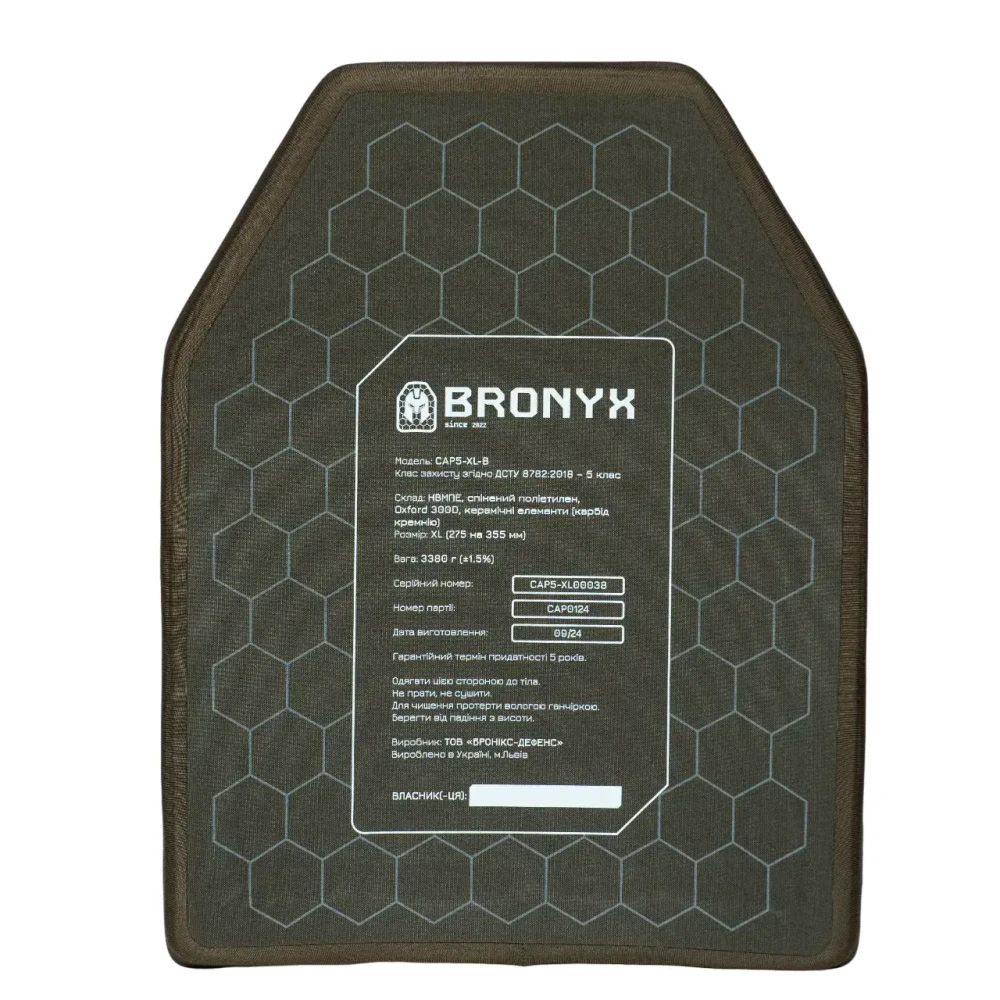

Armor plate Bronyx CAP5 class 5 (1 pc.)

Armor plate Bronyx 5th class

Bronyx Class 5 armor plate is a lightweight armor plate made of ceramics (Silicon Carbide SiC) and ultra-high molecular weight polyethylene (UHMWPE) that will reliably protect you in the most difficult conditions.

The plates have a standardized Shooter's Cut shape with beveled upper corners and an anatomical 3D curve (3D multi curved), which provides a comfortable fit to the body and even weight distribution. Optimal for chest circumferences from 120 cm (±5 cm).

The size of the plate is 275x355 mm.

Protective properties

The armor plate corresponds to protection class 5 according to DSTU 8782:2018 . Protective properties are confirmed by tests in a certified laboratory.

• protection against 7N10 bullets (7.62x39 BZ, bullet speed 715 ±15m/s);
• protection against bullets 57-N-323s (7.62x54 LPS, bullet speed 850 ±15m/s);
• protection against debris, shrapnel and ricochets.

Depth of non-obstructive deformation (max), mm

• 7.62 x 39 BZ - 20 mm
• 7.62 x 54 LPS - 23 mm

For body armor without a damping lining, it is recommended to use an additional damper to reduce armor deformation when hit by a bullet.

Main advantages

• 5th protection class according to DSTU 8782:2018 ;
• material - ceramics ( silicon carbide SiC ) and ultra-high molecular weight polyethylene ( UHMWPE );
• anatomical 3D Multi Curved bend;
• Shooter's Cut shape;
• size XL — 275x355 mm;
• Protection area: 900 sq m
• The weight of one plate is 3.46 kg .

Characteristics

• Manufacturer: BRONYX
• Type: armor plate
• Protection class: 5
• Standard: DSTU 8782:2018
• Material:
• 1 layer Foamed polyethylene
• 2nd layer Ceramics (Silicon Carbide SiC)
• 3rd layer ULPHPE (ultra-high molecular weight polyethylene)
• 4 layer Foamed polyethylene
• Oxford outer layer
• Size: 275x355 mm
• Size: XL
• Thickness: 26-27 mm
• Shape: Shooter's Cut
• Curve: 3D Multi Curved
• Weight: 3.46 kg
