Monocular Konus Konusmall-2 7-17x30

Monocular Konus Konusmall-2 7-17x30

Konus Konusmall-2 7-17x30 is a compact tactical monocular designed for observation, reconnaissance and orientation in the field. Thanks to its variable magnification, low weight and robust design, the device is suitable for military use, shooting training, security tasks and work in difficult terrain.

The monocular is equipped with a variable magnification of 7x–17x , which allows you to work effectively at both medium and long distances. This allows you to quickly identify targets, observe the terrain or control the perimeter without using dimensional optics.

The optical system is built on BAK4 prisms with multi-coated lenses , which provides a clear, high-contrast image with minimal light loss. The device works well in low light conditions - at dusk or in cloudy weather.

The body is made of anodized metal with an anti-slip coating, resistant to mechanical stress and suitable for use in field conditions. Compact dimensions allow you to carry the monocular in a bag, pocket or on equipment.

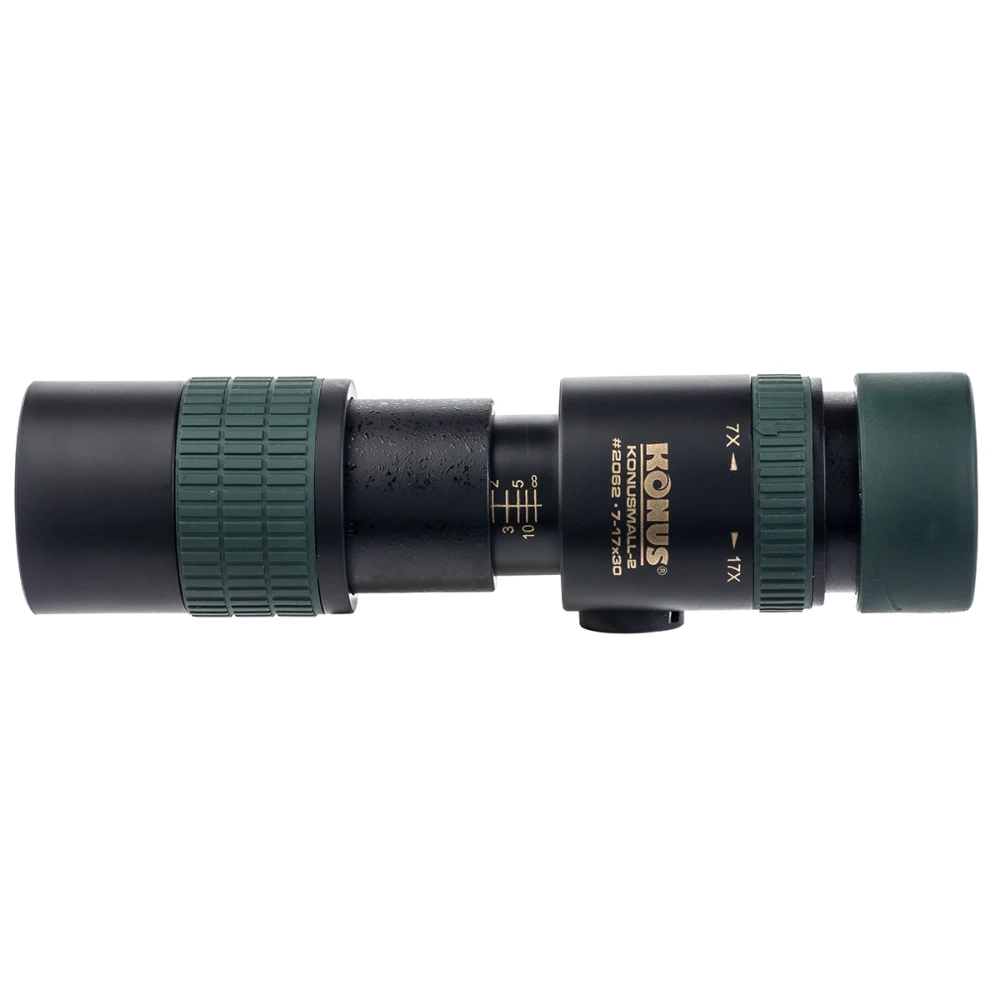

A dual focusing system is provided : coarse adjustment is performed by extending the lens, and fine adjustment is performed by the focus ring. This allows you to quickly adapt to changes in distance without losing time.

For stable observation at maximum magnifications, the monocular has a thread for mounting on a tripod , which is important during prolonged observation or fixing sectors.

Main characteristics

• Magnification: 7x-17x

• Lens diameter: 30 mm

• Prisms: BAK4

• Lens Clearance: Multi-Coated

• Exit pupil diameter: 4.3–1.8 mm

• Field of view at 1000 m: 80.5–45.5 m

• Aperture: 18.4–3.1

• Focusing: dual (coarse + fine)

• Tripod mount: yes

• Body material: anodized metal

• Weight: about 156 g

• Dimensions: 130x45x45 mm


Advantages

• Variable magnification for flexible work at different distances

• High-quality BAK4 optics with multi-coated illumination

• Rugged metal housing for field conditions

• Compact and lightweight - convenient for tactical equipment

• Tripod mountable for stable observation


The Konus Konusmall-2 7-17x30 monocular is a reliable tactical optical device that allows you to work effectively in the most difficult field conditions and confidently maintain control at different distances.
