Side armor plate Bronyx 6 class NVMPE + SiC 20x15 cm (1 pc.)

Side armor plate Bronyx 6 class NVMPE + SiC (1 pc.)

The Bronyx BRO-SCAP6-M-SIC-B side armor plate is designed for additional protection of the side areas of the torso when using body armor and plate carriers. The plate is sold individually , so you can purchase one or the required number of plates depending on the equipment configuration.

The plate corresponds to protection class 6 according to DSTU 8782:2018 and is capable of stopping 7.62x54 mm (B-32) armor-piercing bullets at a speed of 860±15 m/s .

Maximum depth of the armor deformation of the casing up to 19 mm .

Construction

The armor plate has a multilayer construction with a combination of ceramics and NVMPE:

• 1 layer: foamed polyethylene;
• 2nd layer: ceramic - silicon carbide SiC;
• 3rd layer: ULPHPE — ultra-high molecular weight polyethylene;
• 4th layer: foamed polyethylene;
• outer layer: Oxford.

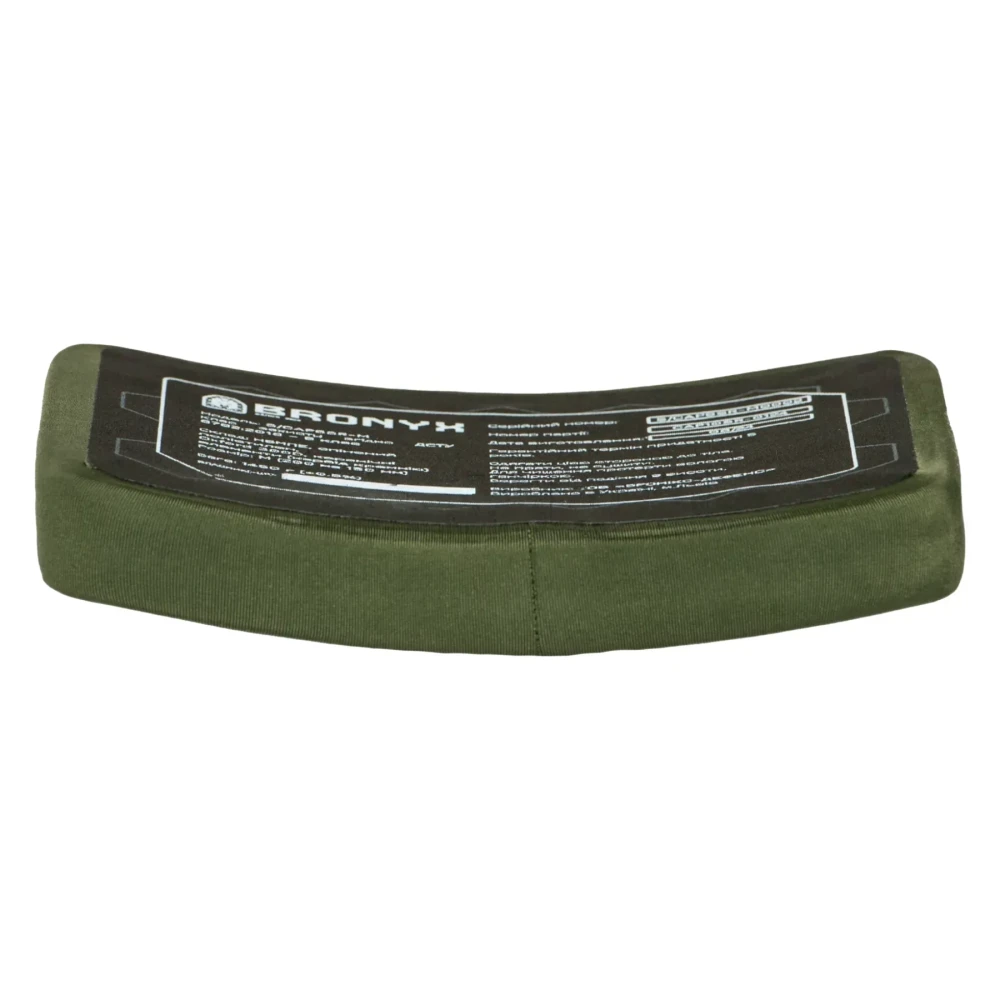

The plate has a single-plane bend and Shooter's Cut shape , which provides a more anatomical fit and freedom of movement while wearing.

Characteristics

• Manufacturer: Bronyx
• Model: BRO-S/CAP6-M-SIC-B
• Type: side armor plate
• Protection class: 6 , DSTU 8782:2018
• Materials: LMPE + silicon carbide SiC
• Protection: 7.62x54 mm (B-32) with a velocity of 860±15 m/s
• Size: 20 x 15 cm
• Thickness: 27-28 mm
• Weight: 1.42 kg
• Shape: Shooter's Cut
