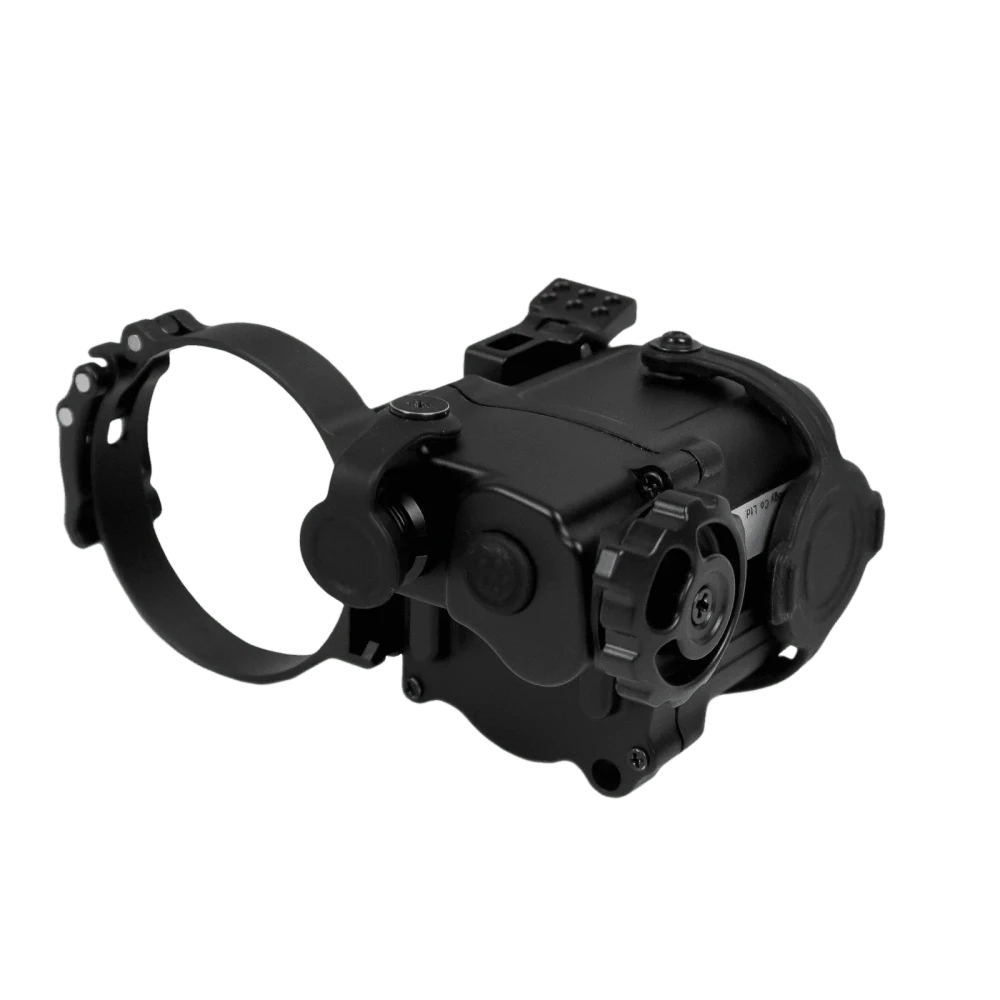

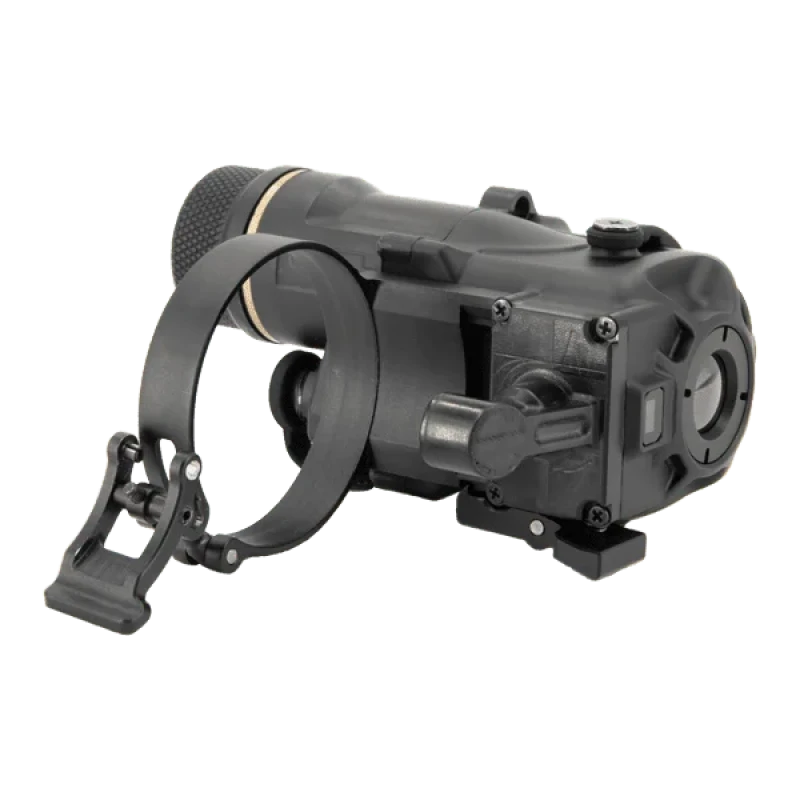

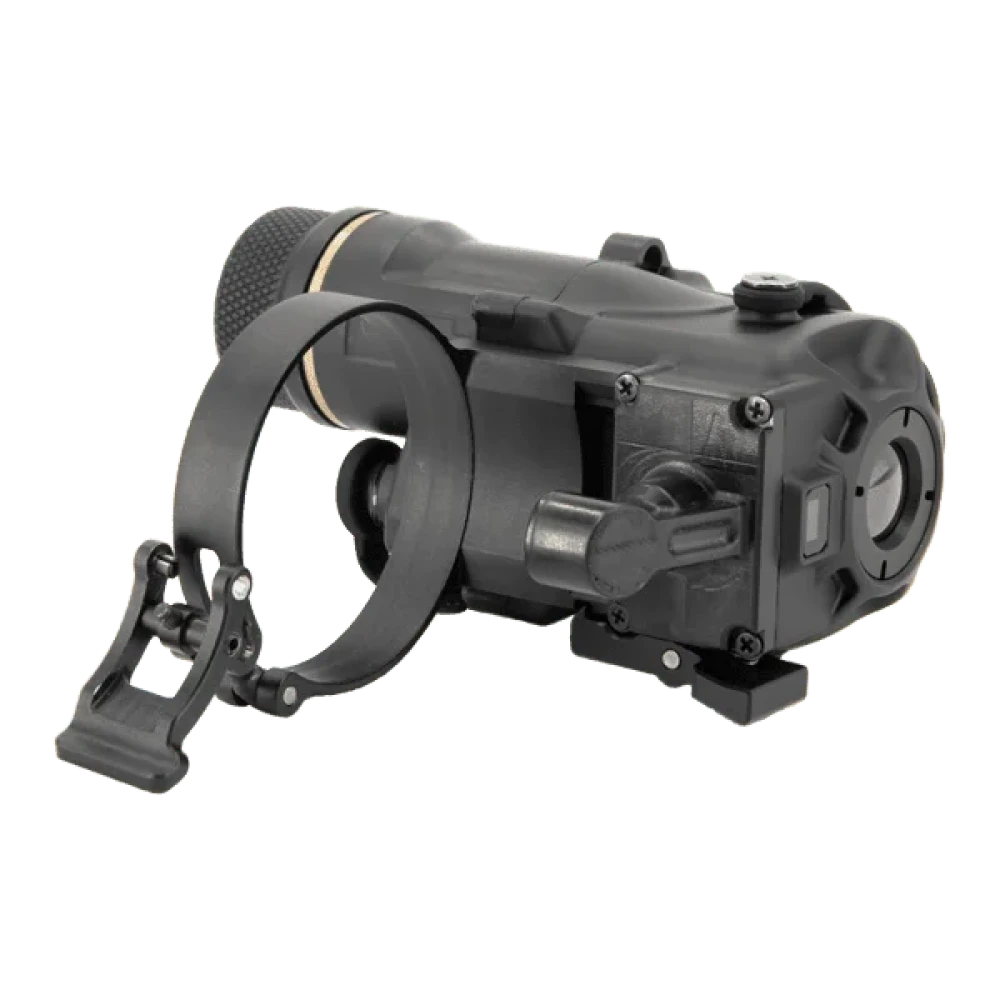

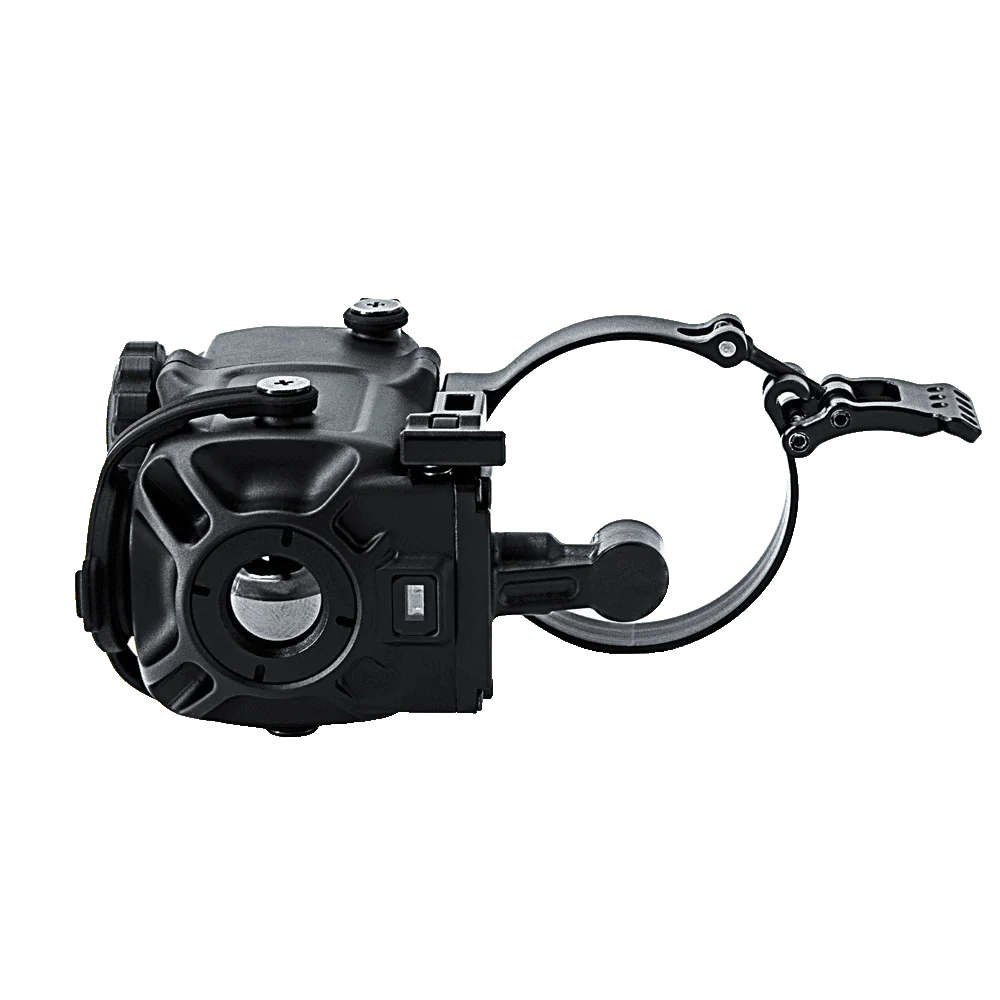

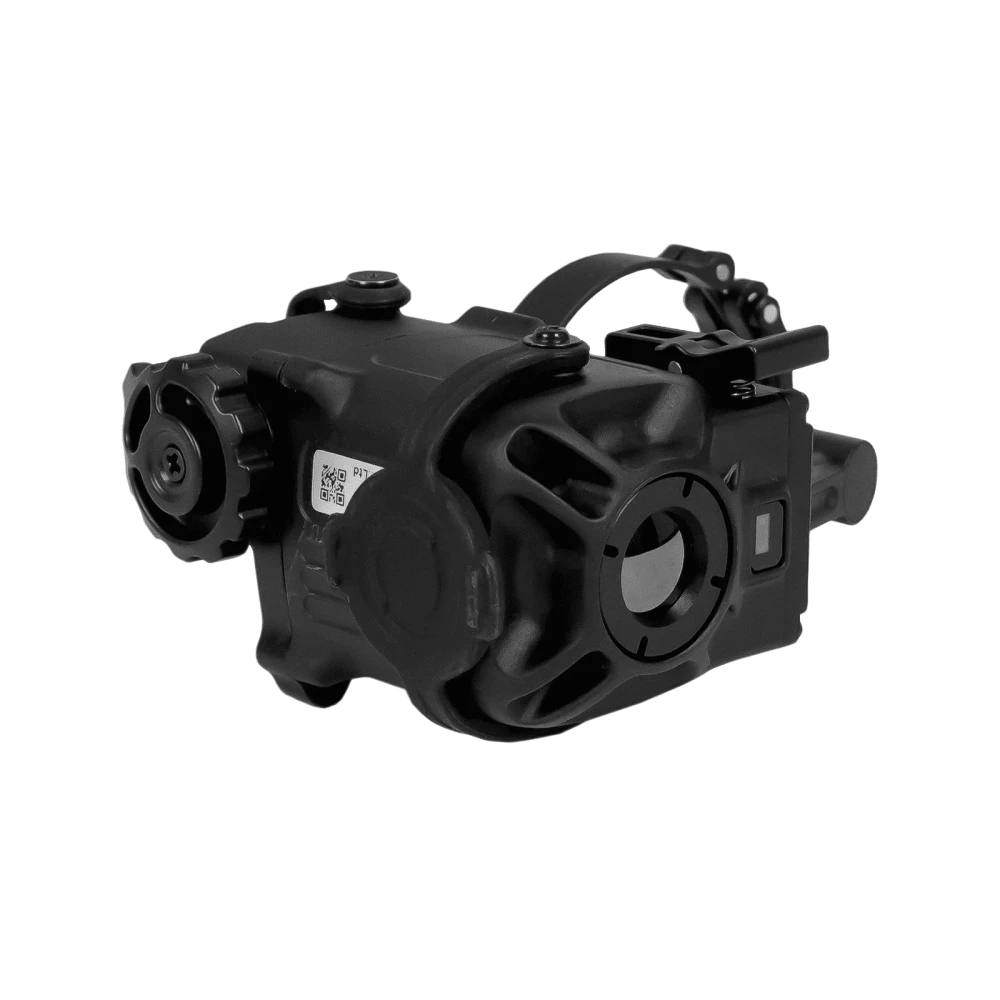

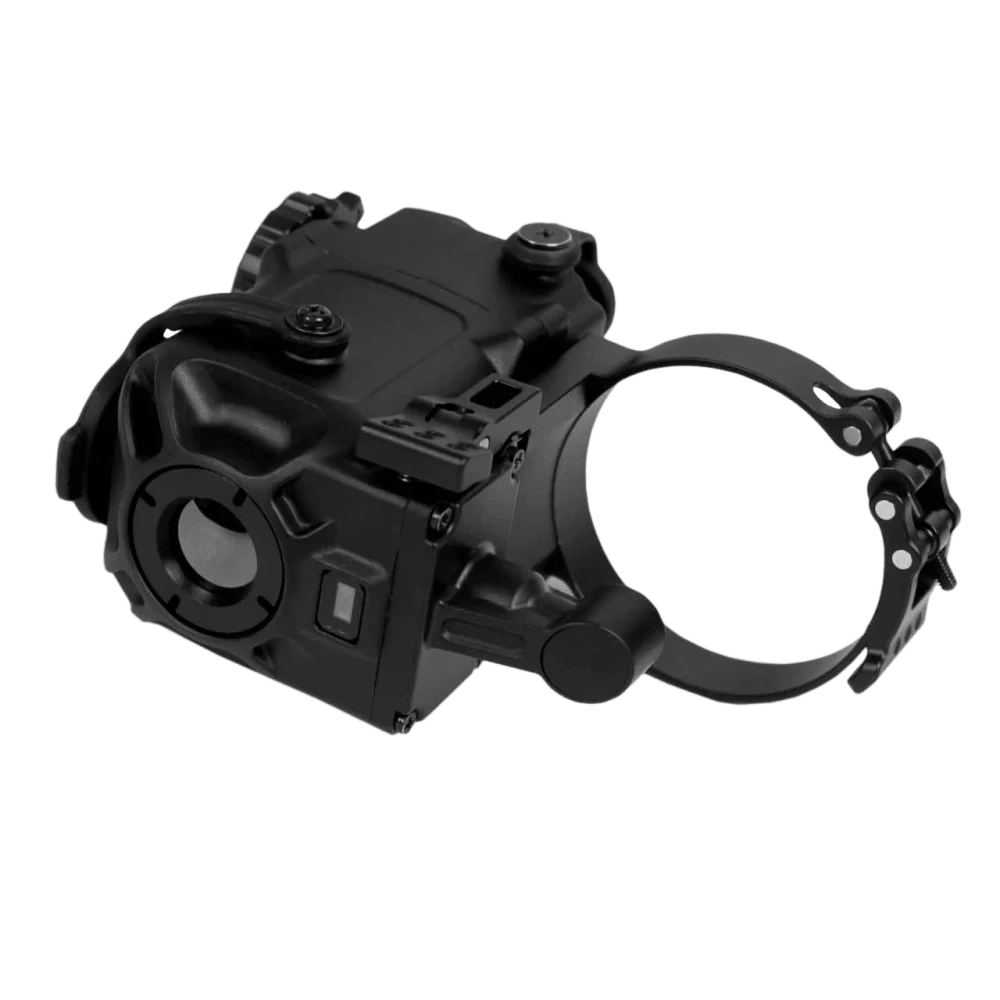

Thermal imaging attachment for PNB Clip-On Jerry C5

Jerry C5 thermal imaging attachment is an advanced device for expanding night vision capabilities

The Jerry C5 thermal imaging attachment is a high-tech device designed to significantly expand the functionality of traditional night vision devices, such as the PVS-7 , PVS-14 , inFOV PVS Mini J-14 , or PVS Mini J-31 .
This innovative module allows you to determine the temperature difference between the object and the background, providing unique opportunities for observation in complete darkness and difficult weather conditions.

Main features of the Jerry C5 thermal imaging nozzle

1. Compatible with a wide range of night vision devices

Jerry C5 can be easily installed on devices such as:

• PVS-7

• PVS-14

• inFOV PVS Mini J-14

• inFOV PVS Mini J-31

• (optional) attachment to MU-3M

Thanks to this, the user can quickly integrate thermal imaging functionality into existing systems, adapting the equipment to different tasks.

2. High-tech thermal imaging matrix

The Jerry C5 model is equipped with a 640×512 pixel bolometric matrix with a pixel size of 12 μm .
This provides a highly detailed thermal image, allows you to detect minimal temperature differences and accurately identify objects even in difficult conditions.

3. Three thermal image display modes

The device offers three operating modes:

• W (White Hot) — full illumination of the entire viewing field;

• H (Highlight) — highlighting the hottest objects on a darkened background;

• O (Outline) — outlines objects, which greatly facilitates shape recognition.

Thanks to this, the user can optimize the device's operation for specific conditions and increase surveillance efficiency.

4. Detection and identification range

• Human detection: 1088 m

• Silhouette recognition: 270 m

• Identification: 136 m

This level of performance makes the nozzle effective at medium and long distances, including in conditions of low visibility, smoke or fog.

5. Full compatibility with PNB

Jerry C5 is specifically designed to work in conjunction with PNB, providing the ability to see thermal targets where traditional night vision devices no longer work.
This makes it a great alternative to expensive FUSION systems (a combination of night vision and thermal vision).

6. High strength and resistance to external conditions

• Protection class: IP67 (complete protection against dust and short-term immersion in water up to 1 m / 30 min)

• Operating temperatures: from -40°C to +60°C

The device is suitable for operation in extreme combat and field conditions.

7. Light weight and compact body

• Jerry C5: 110g (without battery)

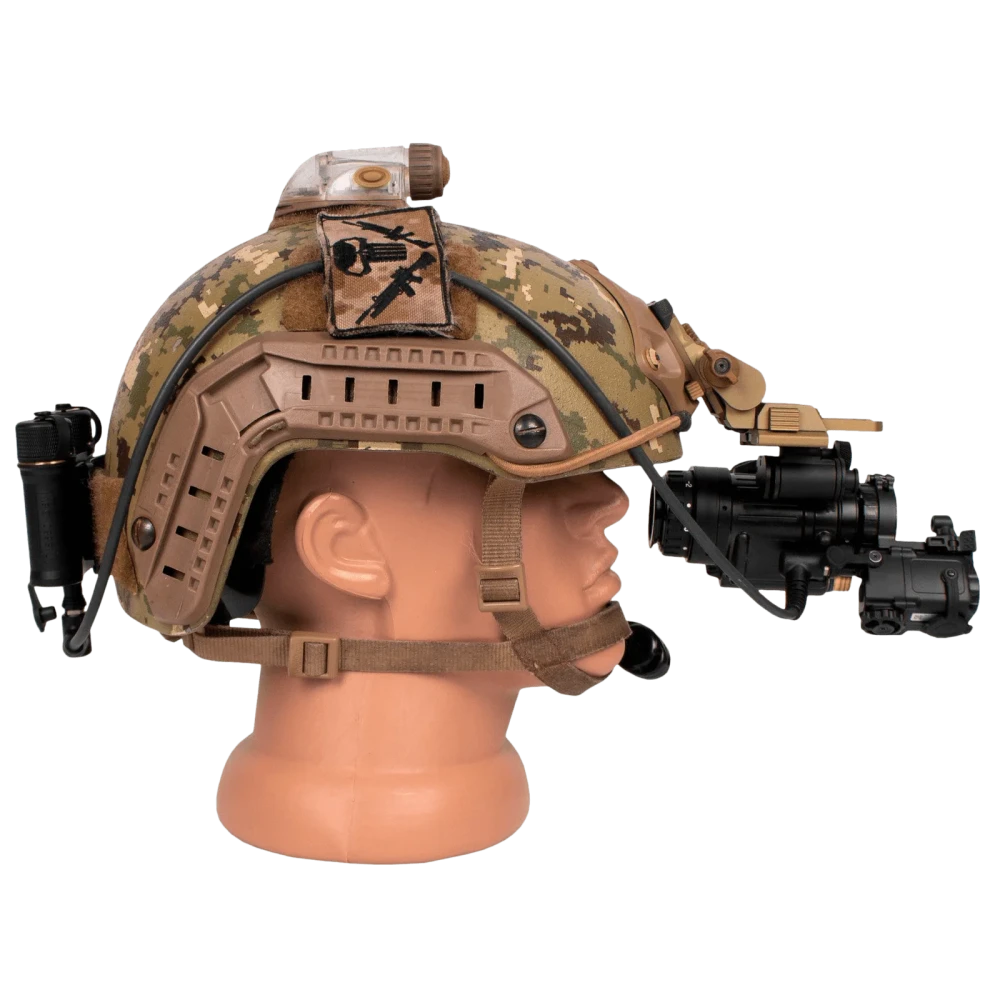

The low weight allows the attachment to be easily mounted on a helmet or headgear without creating discomfort or overloading the user.

8. Installation and power supply

• Jerry C5 is powered by replaceable rechargeable batteries or CR123 batteries

• Installation: quick installation using a special clamp mount

9. Functionality and ease of management

• 360° image rotation — allows you to adjust the position for a specific PNB

• Intuitive control - all functions are accessible via a single control wheel

• Automatic brightness adjustment — adapts to conditions without manual intervention

Advantages of the Jerry C5 thermal imaging nozzle

• High detection range and accuracy (640×512, 12 μm)

• Universal application - compatibility with major PNB models

• Multiple viewing modes for any conditions

• Lightweight and compact - ideal for long-term work

• High resistance to weather conditions

• Quick and reliable installation, easy operation
